Sunday, May 29, 2011

Rxx - Extension to the Reactive Extensions…

For those of you that use the Rx forums you will have no doubt found an answer or even had your question answered by either James Miles or Dave Sexton. These two have put their mighty brains together to produce some handy extensions to Rx. They went with the fairly obvious (but tongue-in-cheek) name Rxx.

http://social.msdn.microsoft.com/Forums/hu-HU/rx/thread/32f6ee34-5edf-4038-894c-ab47fc893a78

The key features that anyone that has been using Rx for a while will immediately be interested in are the

  • Tracing/Logging
  • PropertyChanged and PropertyDescriptor extensions
  • FileSystemWatcher
  • and the uber-funky OperationalObservable eg. var os = xs + ys – zs;

For a more complete list look at the documentation.

This could well be a community contribution that could help guide the actual Rx implementations that start coming out of Microsoft (like the Community Extensions around for P&P propjects). James and Dave seem to be taking this quite seriously. They have been checking regularly (with sensible comments!), constructed the codeplex site very well and have already got their issue trackers running.

This is one to keep an eye on.

http://rxx.codeplex.com/

Technorati Tags: ,

Wednesday, May 25, 2011

Rx code from Perth Presentation

Sorry about the delay in getting this code up. For those who could not make it, my part of the presentation did a bit of an intro and then discussed the testability of Rx and the easy way to deal with streaming data such as pricing in a financial industry.

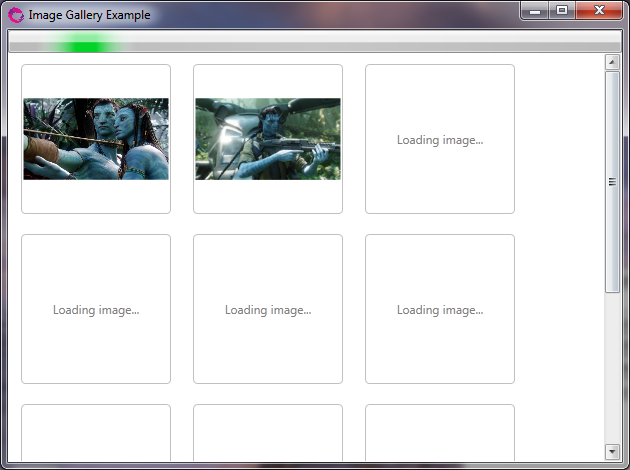

RxSamplesGalleryScreenShot

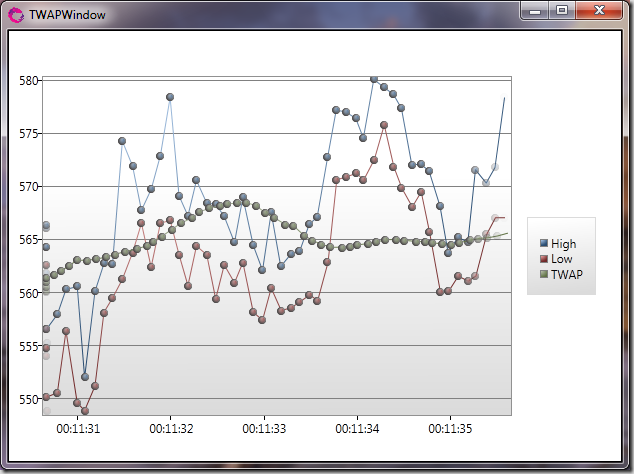

RxSamplesTWAPChartScreenShot

The key samples from my half of the presentation that raised some interest was the testability of the Photo Gallery View model. The Gallery ViewModel was effectively this

/// <summary>
/// Tested Rx implementation of the ViewModel
/// </summary>
public sealed class RxPhotoGalleryViewModel : INotifyPropertyChanged
{
    public RxPhotoGalleryViewModel(IImageService imageService, ISchedulerProvider scheduler)
    {
        IsLoading = true;
        var files = imageService.EnumerateImages()
                                .ToObservable();

        files
            .SubscribeOn(scheduler.ThreadPool)
            .ObserveOn(scheduler.Dispatcher)
            .Subscribe(
                imagePath =>
                {
                    Images.Add(imagePath);
                },
                () =>
                {
                    IsLoading = false;
                });
    }

    private readonly ObservableCollection<string> _images = new ObservableCollection<string>();
    public ObservableCollection<string> Images
    {
        get { return _images; }
    }

    private bool _isLoading;
    public bool IsLoading
    {
        get { return _isLoading; }
        set
        {
            if (_isLoading != value)
            {
                _isLoading = value;
                InvokePropertyChanged("IsLoading");
            }
        }
    }

    #region Implementation of INotifyPropertyChanged

    public event PropertyChangedEventHandler PropertyChanged;

    public void InvokePropertyChanged(string propertyName)
    {
        PropertyChangedEventHandler handler = PropertyChanged;
        if (handler != null) handler(this, new PropertyChangedEventArgs(propertyName));
    }

    #endregion
}

Except from the constructor, there is really just two properties that expose change notification for the WPF binding engine. Now the code in the constructor is demo-quality in the sense that it is not good practice to do so much work in the constructor. Maybe this would be better

public sealed class RxPhotoGalleryViewModel
{
    private readonly IImageService _imageService;
    private readonly ISchedulerProvider _scheduler;

    public RxPhotoGalleryViewModel(IImageService imageService, ISchedulerProvider scheduler)
    {
        _imageService = imageService;
        _scheduler = scheduler;
    }

    public void Start()
    {
        IsLoading = true;
        var files = _imageService.EnumerateImages()
                                .ToObservable();

        files
            .SubscribeOn(_scheduler.ThreadPool)
            .ObserveOn(_scheduler.Dispatcher)
            .Subscribe(
                imagePath => Images.Add(imagePath),
                () =>IsLoading = false);
    }
//....
}

The test fixture is fairly simple. We pass in a mock implementation of the IImageService and the TestSchedulerProvider similar to the one shown in Rx Part 8 – Testing Rx.

[TestClass]
public class RxPhotoGalleryViewModelTests
{
    private Mock<IImageService> _imageSrvMock;
    private TestSchedulderProvider _testSchedulderProvider;
    private List<string> _expectedImages;

    [TestInitialize]
    public void SetUp()
    {
        _imageSrvMock = new Mock<IImageService>();
        _testSchedulderProvider = new TestSchedulderProvider();

        _expectedImages = new List<string> { "one.jpg", "two.jpg", "three.jpg" };
        _imageSrvMock.Setup(svc => svc.EnumerateImages())
                        .Returns(_expectedImages);

    }

    [TestMethod]
    public void Should_add_ImagesServiceResults_to_Images()
    {
        //Arrange
        // done in setup

        //Act
        var sut = new RxPhotoGalleryViewModel(_imageSrvMock.Object, _testSchedulderProvider);
        _testSchedulderProvider.ThreadPool.Run();
        _testSchedulderProvider.Dispatcher.Run();

        //Assert
        CollectionAssert.AreEqual(_expectedImages, sut.Images);
    }

    [TestMethod]
    public void Should_set_IsLoading_to_true()
    {
        //Arrange
        // done in setup

        //Act
        var sut = new RxPhotoGalleryViewModel(_imageSrvMock.Object, _testSchedulderProvider);

        //--NOTE-- note the missing TestScheduler.Run() calls. This will stop any observable being processed. Cool.

        //Assert
        Assert.IsTrue(sut.IsLoading);
    }

    [TestMethod]
    public void Should_set_IsLoading_to_false_when_completed_loading()
    {
        //Arrange
        // done in setup

        //Act
        var sut = new RxPhotoGalleryViewModel(_imageSrvMock.Object, _testSchedulderProvider);
        _testSchedulderProvider.ThreadPool.Run();
        _testSchedulderProvider.Dispatcher.Run();

        //Assert
        Assert.IsFalse(sut.IsLoading);
    }
}

As we now control the scheduling/concurrency we don't have to try to do anything fancy with Dispatchers,  BackgroundWorkers, ThreadPools or Tasks which are very difficult to perform unit testing on. Check out the pain that I went through to test responsive WPF apps in this post on Testing Responsive WPF complete with DispatcherFrame and Thread.Sleep(300) in my tests Sad smile

If you want the running code you can either pull the code down via SVN by following this http://code.google.com/p/rx-samples/source/checkout or you can download the zip.

The PowerPoint presentation is here

You may also be interested in the Design Guidelines produced by the Rx team at Microsoft and also where to get the latest version of Rx

Back to the contents page for Reactive Extensions for .NET Introduction

Wednesday, May 11, 2011

Rx session in Perth, Australia

James Miles and I will be giving a presentation on Rx to a Perth audience this Thursday. If you are in town then come on down!

As those that read this blog will know, Rx is my thing at the moment so feel free to bring plenty of questions.

Full details can be found at the Perth .NET Community of Practice.

Introduction to Rx with Lee Campbell and James Miles

See you there.
Lee
